High Purity Thermal Spray Pure Zinc Wire 3.17mm for Anti-Corrosion Coating Applications

Product Description

Product Overview

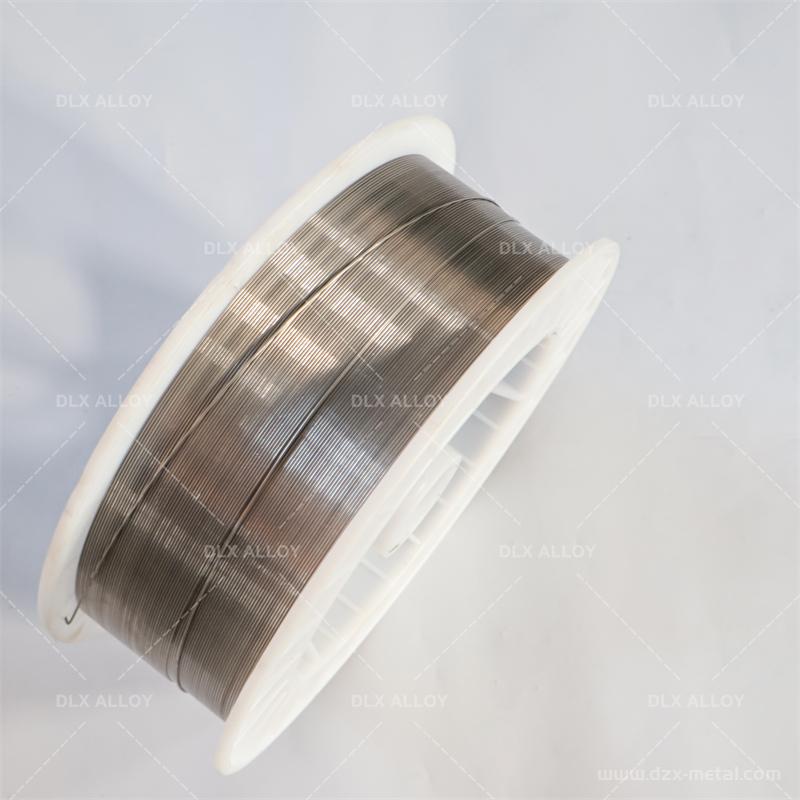

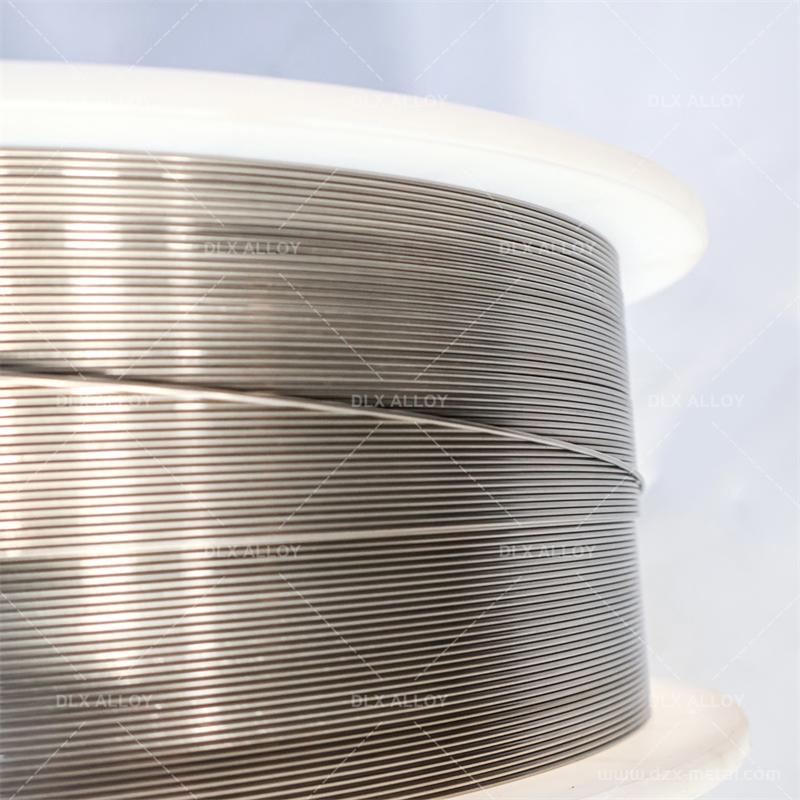

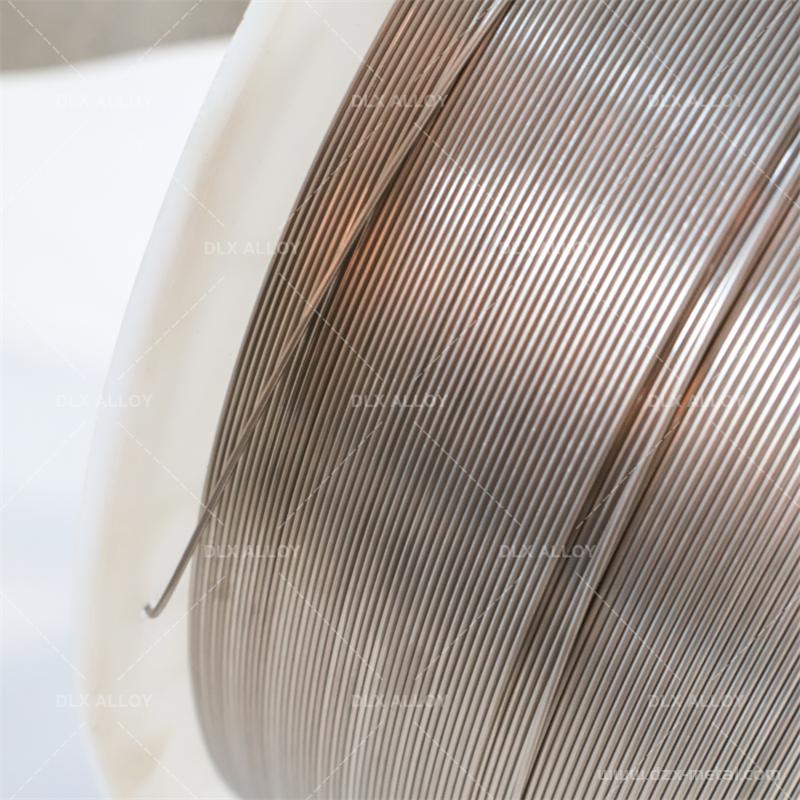

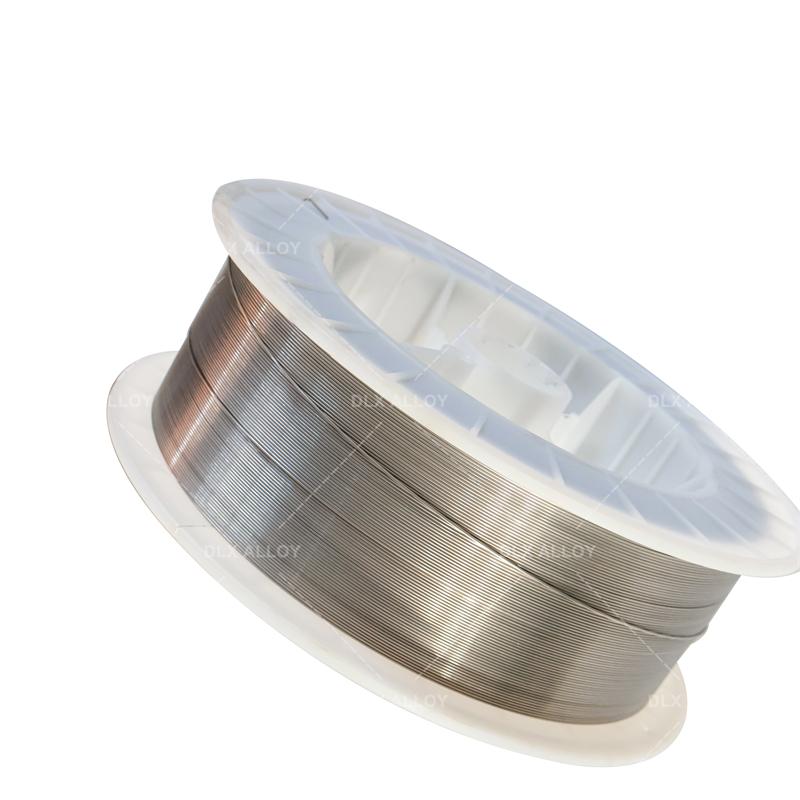

Thermal Spray Pure Zinc Wire is a high-purity metallic wire primarily composed of 99.9% zinc, widely known for its excellent corrosion protection properties. Also referred to as zinc Thermal Spray Wire or zinc metallizing wire, it is silver-gray in color with a smooth surface finish. The wire is specifically engineered for thermal spray systems such as arc spray or flame spray, and it is commonly used to form sacrificial coatings on metal surfaces that are exposed to marine, industrial, or atmospheric environments.

Material and Characteristics

• Material: Pure zinc (Zn ≥ 99.9%)

• Color: Silver gray

• Wire Diameters: Common sizes include 1.6mm, 2.0mm, 2.3mm, 3.17mm, others customizable

• Melting Point: Approximately 419.5°C

• Density: 7.14 g/cm³

• Electrical Conductivity: Excellent

• Coating Adhesion: Strong metallurgical bond with substrate

• Packaging: Wire coils or spools, 15kg to 250kg per unit

Application Areas
Thermal Spray Pure Zinc Wire is ideal for providing a long-lasting protective layer against rust and corrosion. It is frequently used in the following sectors:

1. Bridges and Steel Structures – Enhancing durability against weathering.

2. Shipbuilding and Marine Equipment – Preventing saltwater corrosion.

3. Pipelines and Tanks – Protecting underground or exposed storage units.

Working Principle
During the thermal spray process, zinc wire is melted using a combustion or electric arc system and then atomized into fine droplets, which are propelled onto the substrate surface. Upon impact, these droplets solidify and form a dense, adhesive coating that acts as a sacrificial anode, protecting the base metal underneath.

Technical Parameters

• Long-lasting corrosion protection

• Easy to apply in both indoor and outdoor environments

• Compatible with multiple spray systems

• Reduces long-term maintenance cost

• Strong bonding with steel and concrete

FAQ
Q1: What is the purity of the zinc wire?
A1: The wire has a minimum purity of 99.9%, ensuring high performance in coating applications.

Q2: What spray methods is this wire compatible with?
A2: It works with arc spray, flame spray, and other thermal spray techniques.

Q3: How thick can the zinc coating be?
A3: Coating thickness typically ranges from 50 to 250 microns, depending on application needs.
