High Quality Welding Rod ERNiCr-3 TIG 1.6mm*1000mm Gas Turbine

Product Information

ERNiCr-3 is a nickel-chromium alloy welding rod designed for Tungsten Inert Gas (TIG) and Metal Inert Gas (MIG) welding applications. It is specifically engineered for use in welding high-performance nickel-based alloys, including Inconel 600, Incoloy 800, and other similar high-temperature resistant materials. ERNiCr-3 is known for its excellent corrosion resistance, strength, and durability under extreme conditions. It is widely used in industries like chemical processing, aerospace, and power generation where high-temperature resistance and corrosion protection are critical.

Other Names:

• Nickel-Chromium Covered Electrode

• AWS A5.14 ERNiCr-3

• UNS W86113 Electrode

Material Composition:

• Nickel (Ni): ≥ 98%

• Chromium (Cr): 14–16%

• Iron (Fe): ≤ 2%

• Manganese (Mn): ≤ 1.0%

• Silicon (Si): ≤ 0.5%

• Carbon (C): ≤ 0.08%

• Phosphorus (P): ≤ 0.02%

• Sulfur (S): ≤ 0.02%

Appearance / Color:

• The welding rod has a solid metallic core with a smooth, uniform flux coating, which is typically light gray to tan in color.

Core Wire Diameter:

• Available in 1.6 mm, 2.4 mm, 3.2 mm, 4.0 mm, 5.0 mm (custom sizes available upon request).

Flux Coating:

• Low-hydrogen flux coating that minimizes the risk of cracking and ensures a clean weld bead.

Packaging:

• Supplied in 5 kg sealed boxes for easy handling and storage.

Characteristics

• Corrosion Resistance: ERNiCr-3 offers excellent resistance to corrosion, particularly in oxidizing and sulfur-containing environments. This makes it ideal for use in industries like chemical processing, marine, and aerospace, where components are exposed to harsh environments.

• High-Temperature Strength: ERNiCr-3 maintains its strength and structural integrity even at high temperatures, making it perfect for welding materials exposed to extreme heat.

• Weldability: The rod provides easy weldability with low spatter and produces smooth, clean welds.

• Durability: ERNiCr-3 offers exceptional service life in high-stress applications, particularly in areas exposed to thermal cycling and chemical corrosion.

• Ductility: The nickel-chromium alloy provides enhanced ductility in the weld metal, helping to maintain weld quality even under stress.

Technology

ERNiCr-3 is designed for TIG welding and MIG welding applications. These processes use a tungsten electrode or a metal electrode to generate an arc between the base material and the welding rod, which melts and fuses the metals together.

• Tungsten Inert Gas (TIG) Welding: The process uses a non-consumable tungsten electrode, with the ERNiCr-3 rod acting as the filler material. It produces highly precise and clean welds, especially on thin-walled materials.

• Metal Inert Gas (MIG) Welding: The rod can also be used for MIG welding where a continuous wire is fed into the welding pool, providing high productivity and clean welds.

The nickel-chromium alloy composition ensures that the final welds provide excellent strength, corrosion resistance, and oxidation resistance. The rod is specifically designed to withstand harsh conditions, making it suitable for applications in which high temperatures and corrosive environments are common.

Theory

In the TIG welding process, the tungsten electrode creates a concentrated arc of heat between itself and the base metal. The ERNiCr-3 welding rod is introduced into the molten pool, where it fuses with the base material, forming a strong and durable bond. The high levels of chromium in the rod help form a protective oxide layer on the weld, preventing oxidation and enhancing corrosion resistance. The nickel content increases the weld's strength and ductility, which are critical in high-stress applications.

Application / Usage

ERNiCr-3 is used extensively in applications requiring high-temperature strength and corrosion resistance. Its main uses include:

1. Chemical Processing:

• Ideal for welding tanks, heat exchangers, reactors, and other equipment that come into contact with oxidizing and sulfur-containing chemicals.

2. Aerospace:

• Perfect for welding components exposed to high temperatures and thermal cycling, such as turbine blades, jet engines, and combustion chambers.

3. Power Generation:

• Used to weld boilers, gas turbines, and other components exposed to high temperatures in power plants.

4. Marine Applications:

• Suitable for welding marine engines, propellers, and offshore equipment that are exposed to saltwater and harsh environmental conditions.

5. Food Processing:

• Ideal for welding equipment used in food and beverage processing, especially when exposed to high-temperature steam and chemical cleaners.

Advantages / Selling Points

• Excellent Corrosion Resistance: ERNiCr-3 offers superb protection against oxidation and corrosion in harsh environments, making it suitable for a wide range of applications.

• High-Temperature Strength: The rod maintains structural integrity and strength even at high temperatures, ensuring reliable welds in extreme conditions.

• Easy Weldability: It offers low spatter, clean welds, and is highly resistant to cracking, which improves the overall weld quality.

• Versatile Applications: It is compatible with a range of materials and industries, from aerospace and chemical processing to marine and power generation.

• Durability and Longevity: The alloy composition ensures long-lasting and durable welds, capable of withstanding thermal cycling, high-pressure, and corrosive conditions.

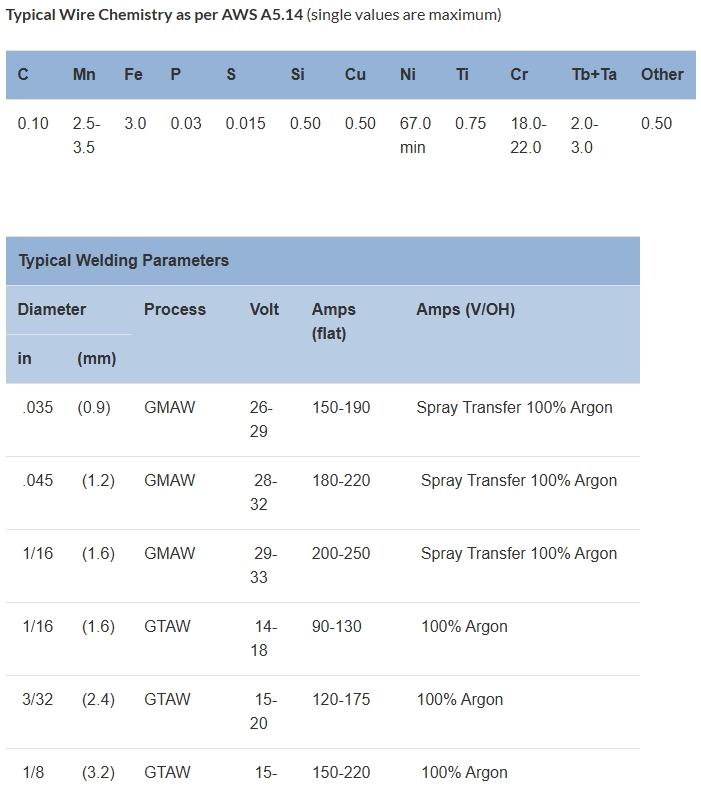

Parameters Table / Selection Table

ERNiCr-3 is a high-performance welding rod that offers excellent corrosion resistance and high-temperature strength, making it ideal for use in demanding industries like aerospace, chemical processing, and power generation. Its durability, ease of use, and versatile applications make it a top choice for welding nickel-based alloys and similar high-performance materials.
