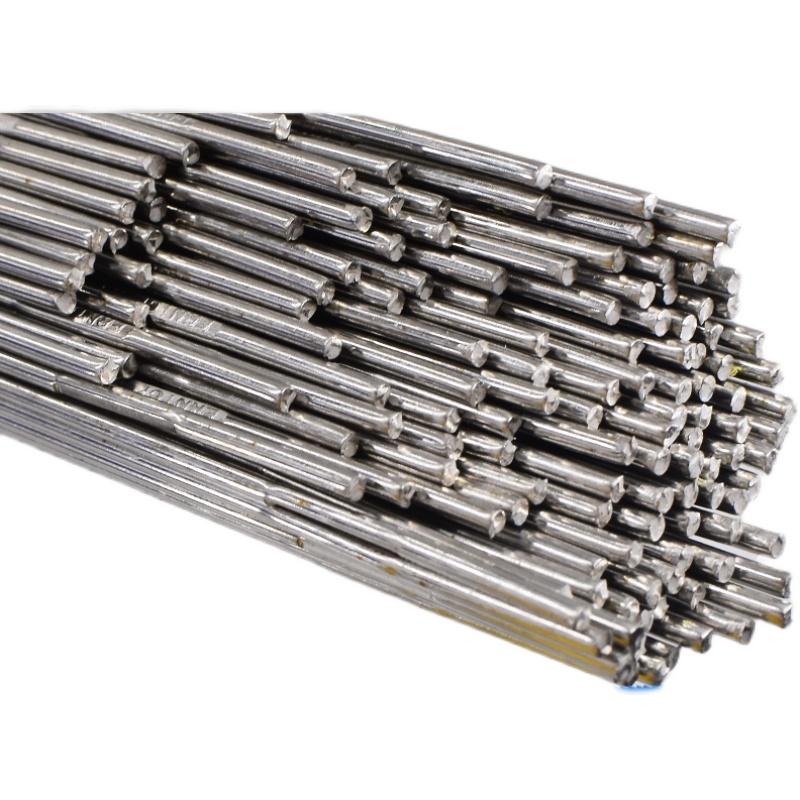

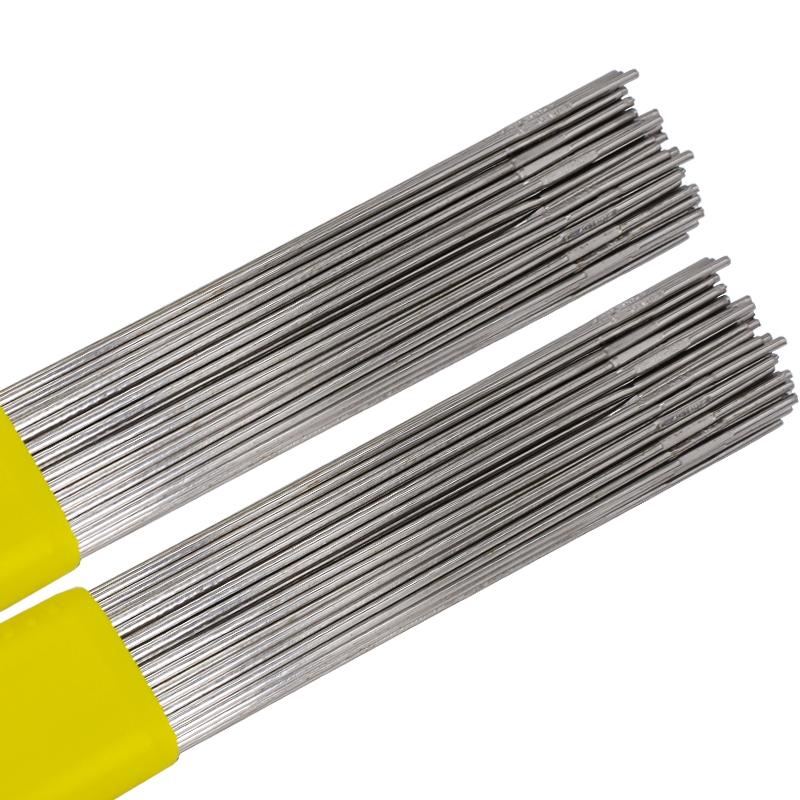

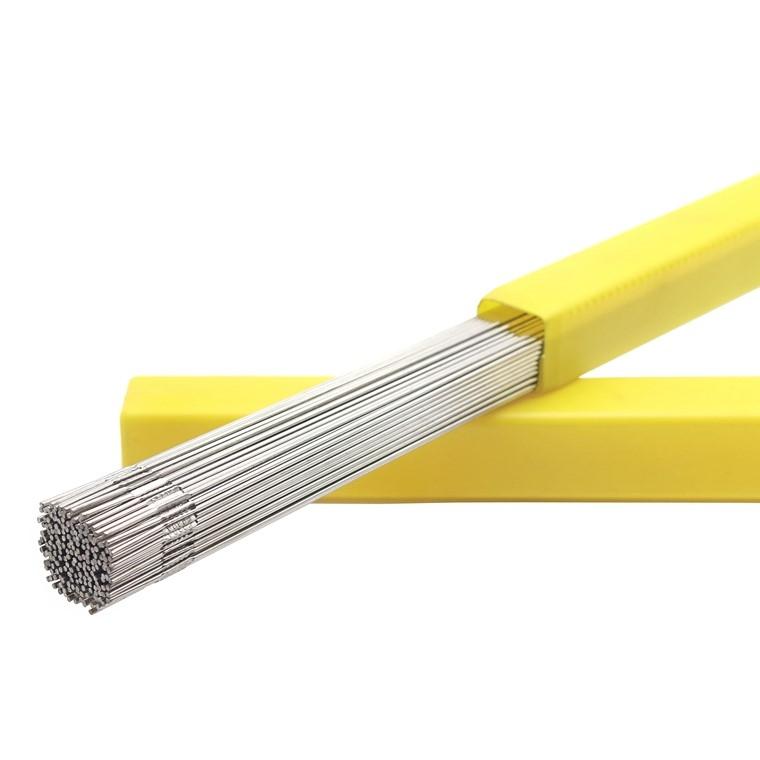

High Temperature Resistance Welding Rod 1200℃ ERNiCrMo-13 TIG 2.4*1000mm for Boiler

Product Information

ERNiCrMo-13 is a nickel-chromium-molybdenum alloy welding rod designed for Tungsten Inert Gas (TIG) and Metal Inert Gas (MIG) welding applications. It is primarily used for welding Inconel 625, Incoloy 825, and similar high-performance nickel-based alloys. This welding rod is highly resistant to corrosion, oxidation, and high-temperature environments, making it ideal for chemical processing, aerospace, marine, and power generation industries.

Other Names:

• Nickel-Chromium-Molybdenum Covered Electrode

• AWS A5.14 ERNiCrMo-13

• UNS W86130 Electrode

Material Composition:

• Nickel (Ni): ≥ 58%

• Chromium (Cr): 20–23%

• Molybdenum (Mo): 8–10%

• Iron (Fe): ≤ 3%

• Manganese (Mn): ≤ 1.0%

• Silicon (Si): ≤ 0.5%

• Carbon (C): ≤ 0.08%

• Phosphorus (P): ≤ 0.02%

• Sulfur (S): ≤ 0.02%

Appearance / Color:

• The welding rod features a solid metallic core with a smooth, light gray to tan flux coating, which provides easy arc striking and low spatter.

Core Wire Diameter:

• Available in 2.4 mm, 3.2 mm, 4.0 mm, and 5.0 mm (custom sizes available upon request).

Flux Coating:

• Low-hydrogen flux coating, which ensures a smooth weld pool and reduces the likelihood of cracking and porosity.

Packaging:

• Supplied in 5 kg sealed boxes, ensuring that the rods are protected from contaminants and are easy to store and transport.

Characteristics

• Corrosion Resistance: ERNiCrMo-13 offers excellent resistance to both oxidizing and reducing environments. It is ideal for applications involving exposure to sulfur and chlorides and is resistant to pitting and crevice corrosion.

• High-Temperature Strength: The alloy maintains its mechanical properties even at elevated temperatures, making it suitable for high-temperature applications where other alloys might fail.

• Weldability: ERNiCrMo-13 provides excellent weldability with low spatter and smooth weld beads. The low-hydrogen flux ensures strong, crack-free welds.

• Ductility and Toughness: The rod exhibits good ductility, which helps maintain weld strength and toughness under both static and dynamic loading conditions.

• High Resistance to Thermal Cycling: The rod can withstand thermal cycling, making it suitable for environments with fluctuating temperatures.

Technology

ERNiCrMo-13 is specifically designed for TIG and MIG welding, utilizing non-consumable tungsten electrodes or continuous wire feeding in MIG welding. The alloy composition provides excellent strength, corrosion resistance, and oxidation resistance for welding high-performance nickel-based alloys and other similar materials.

• Tungsten Inert Gas (TIG) Welding: Uses a non-consumable tungsten electrode to produce an arc that melts the base material and the ERNiCrMo-13 rod to create the weld. This process results in highly precise and clean welds, especially on thin-walled materials.

• Metal Inert Gas (MIG) Welding: Uses a continuous feed of the ERNiCrMo-13 wire into the molten weld pool to create a strong and clean weld. MIG welding is well-suited for high-speed welding of thicker materials.

Theory

During the welding process, the ERNiCrMo-13 rod is melted and fused with the base material. The chromium content helps form a protective oxide layer, while the molybdenum enhances the alloy’s resistance to both oxidation and sulfur corrosion. The nickel content contributes to improved ductility, and the rod’s ability to form a strong, high-quality bond ensures durability in high-stress and high-temperature environments.

The flux coating is formulated to reduce hydrogen exposure during welding, preventing the formation of cracks and ensuring a smooth and clean weld.

Application / Usage

ERNiCrMo-13 is widely used in industries that demand high-temperature performance and corrosion resistance, such as:

1. Chemical Processing:

• Welding tanks, reactors, and heat exchangers exposed to highly corrosive substances, especially those containing sulfur or chlorides.

2. Aerospace:

• Suitable for welding turbine blades, combustion chambers, and other parts of jet engines or gas turbines exposed to high thermal stress.

3. Power Generation:

• Used for welding components in gas turbines, boilers, and high-temperature reactors.

4. Marine Applications:

• Ideal for components exposed to saltwater and marine environments, such as propellers and marine engines.

5. Petrochemical:

• Perfect for welding parts in refineries or petrochemical plants where exposure to high heat and corrosive substances is common.

Advantages / Selling Points

• Exceptional Corrosion Resistance: Excellent in resisting oxidation, corrosion, and pitting in harsh environments such as chemical plants and offshore applications.

• High-Temperature Strength: Stays strong and durable at high temperatures, making it suitable for welding gas turbines, heat exchangers, and more.

• Weldability: Provides easy arc striking, smooth welds, and low spatter, making it highly user-friendly.

• Versatility: Can be used with both TIG and MIG processes, offering flexibility in welding operations.

• Durability: The alloy is tough and resists thermal cycling, ensuring long-lasting performance in extreme conditions.

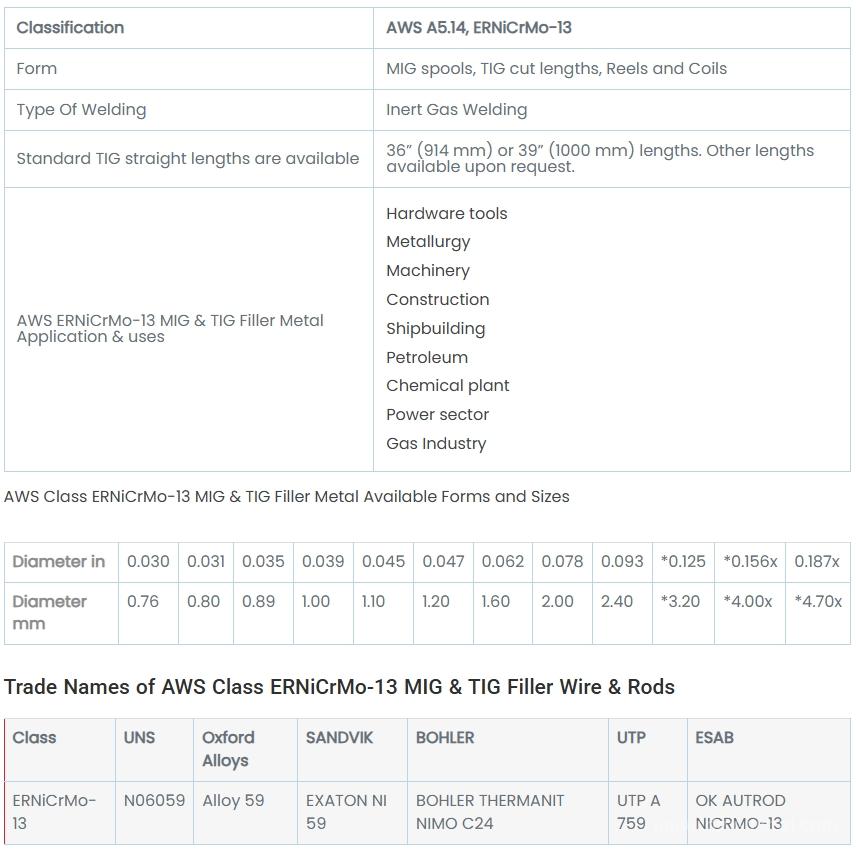

Parameters Table / Selection Table
