Hot Sale Alloy 61 Wholesale Price 2.4*1000mm TIG Welding Rod ERNi-1 ASAW GMAW GTAW

Product Information

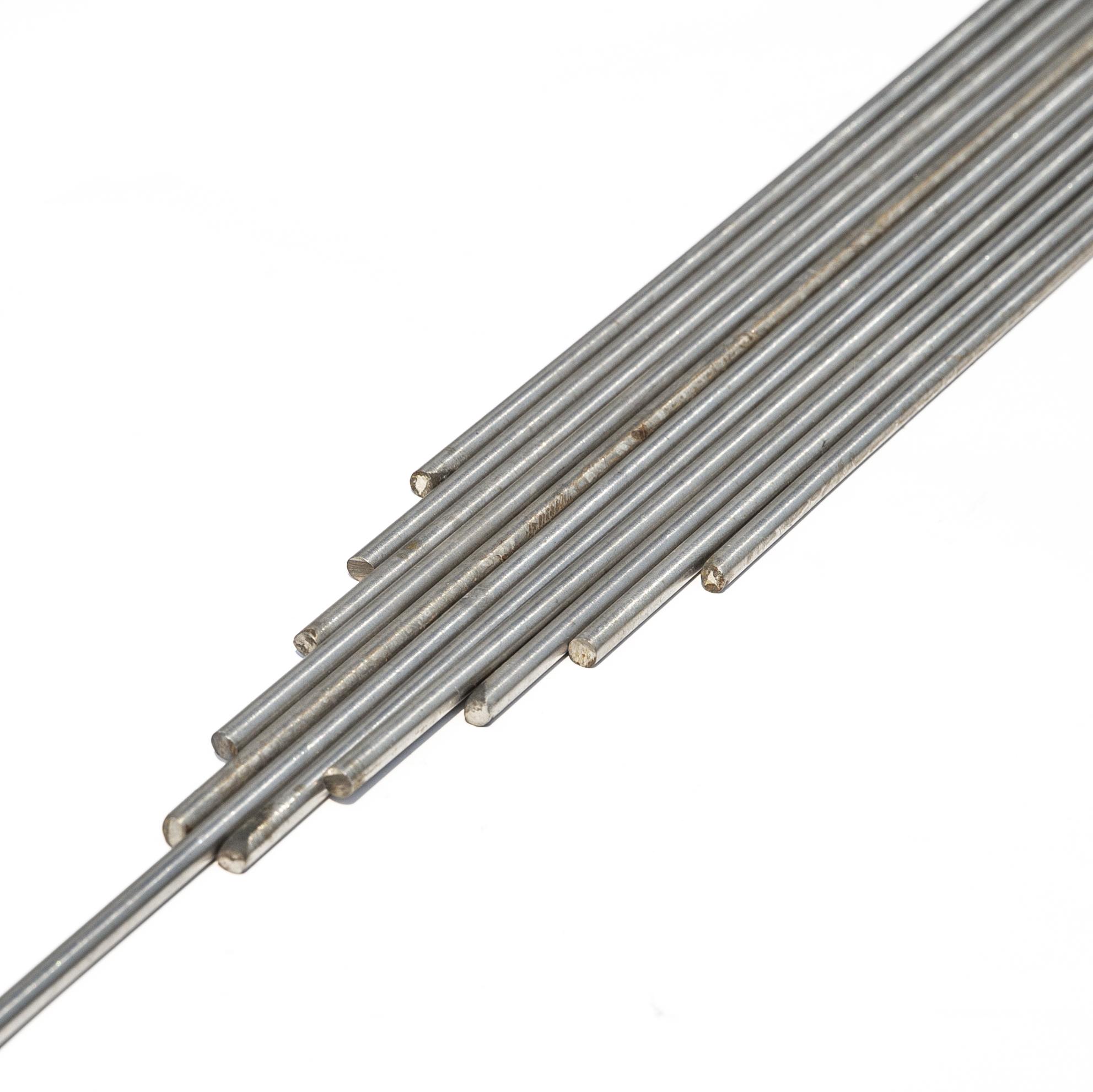

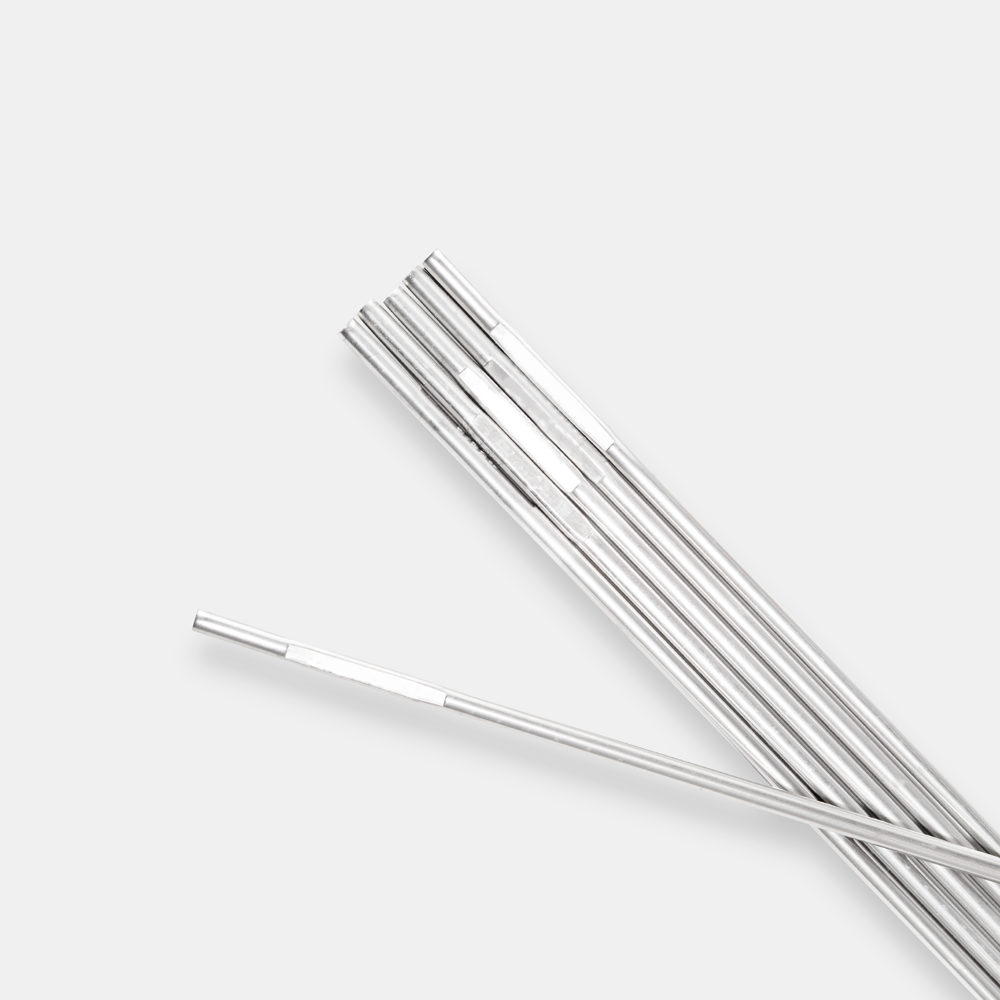

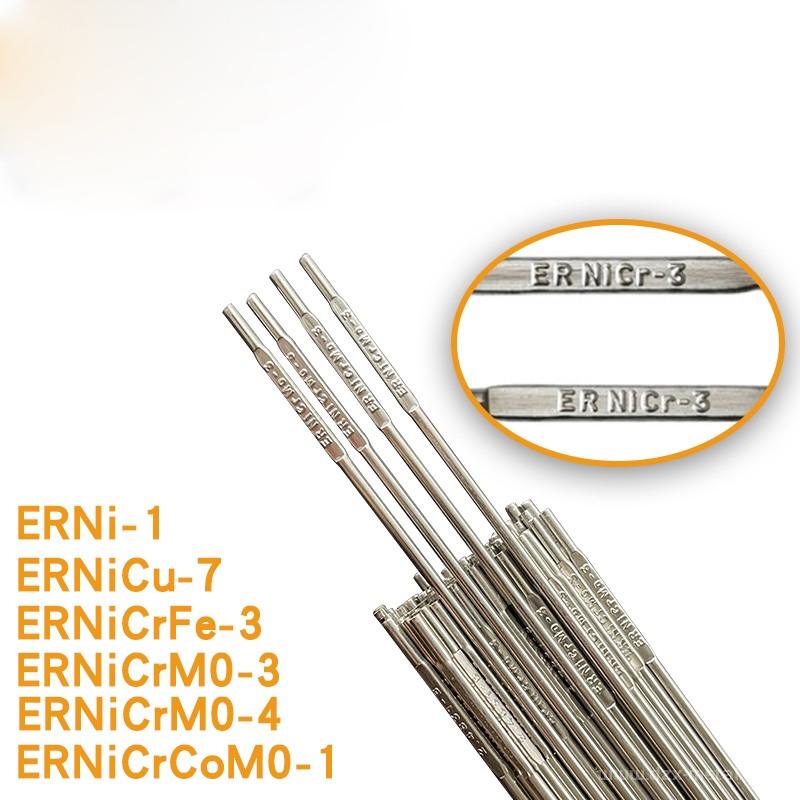

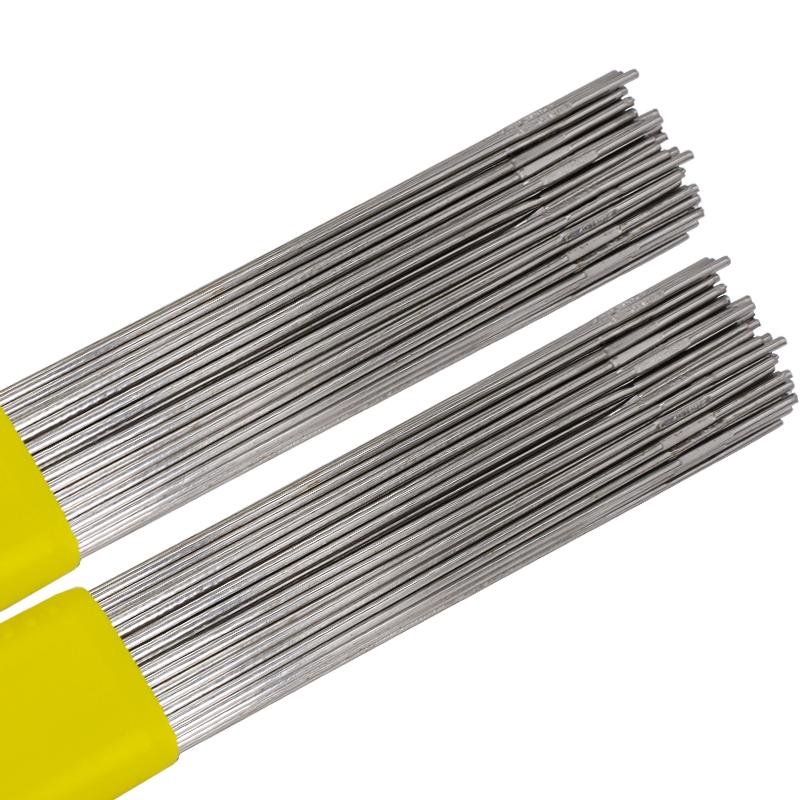

ERNi-1 is a nickel-based solid Welding Wire designed for GTAW (TIG) and GMAW (MIG) welding processes. It is primarily used to weld nickel 200 and 201 alloys, and it can also be used for joining nickel to dissimilar metals such as stainless steels, carbon steels, or copper-nickel alloys. The wire offers excellent resistance to many corrosive environments, particularly in caustic alkali solutions, acidic media, and marine conditions.

Also Known As:

• Nickel 200 Welding Wire

• Pure Nickel Welding Rod

• AWS A5.14 ERNi-1

• UNS N02061 Welding Wire

Material Composition:

• Nickel (Ni): ≥ 99.0%

• Iron (Fe): ≤ 0.4%

• Carbon (C): ≤ 0.15%

• Manganese (Mn): ≤ 0.35%

• Silicon (Si): ≤ 0.35%

• Sulfur (S): ≤ 0.01%

Color / Appearance:

• Shiny silver-gray metallic wire

• Available in bright finish or cleaned spool

Available Diameters:

• 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm, 2.4 mm, 3.2 mm

Packaging:

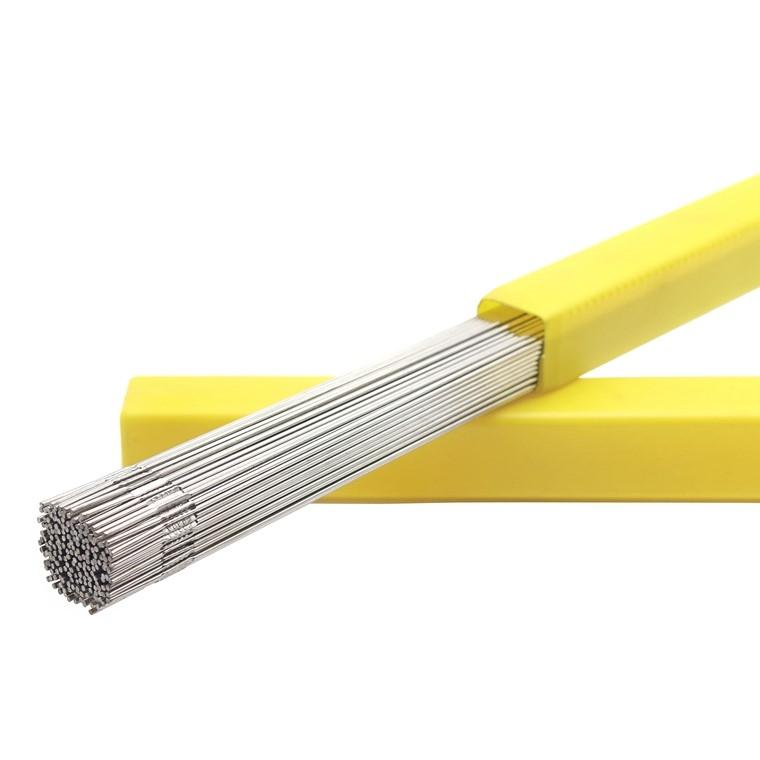

• TIG cut lengths: 1 kg / 5 kg tubes

• MIG wire spools: 5 kg / 15 kg

Standards:

• AWS A5.14 / ASME SFA-5.14 ERNi-1

• ISO 18274 Ni99

Characteristics

• High Purity Nickel: Contains ≥ 99% nickel for exceptional corrosion resistance

• Excellent Ductility and Weldability: Suitable for manual and automated TIG/MIG operations

• Versatile Metal Compatibility: Welds nickel to carbon steel, stainless steel, and copper-nickel alloys

• Good Mechanical Strength: Ideal for pressure vessels and structural components

• Smooth Arc Characteristics: Easy to use, clean weld bead with minimal spatter or slag

Technology

ERNi-1 is optimized for:

• TIG Welding (GTAW): With 100% Argon shielding gas, it produces precision welds and is preferred for thin-walled or high-purity applications.

• MIG Welding (GMAW): Provides higher productivity and continuous welding for larger fabrication tasks, using Argon or Argon-He with 1–2% O₂ or CO₂ mixtures.

Proper cleaning and surface preparation are essential to ensure contamination-free, high-quality welds.

Theory

The ERNi-1 welding rod works by melting and fusing with nickel or compatible base metals, forming a corrosion-resistant joint with excellent metallurgical bonding. Its pure nickel base gives it low electrical resistivity and high thermal conductivity. The low levels of sulfur, silicon, and carbon minimize the formation of brittle phases or weld cracking, even under thermal cycling or stress.

Application / Usage

1. Chemical Processing Industry:

• Welds for caustic soda production lines, bleach plants, and acid reactors

• Resistant to alkali, chlorine, and other aggressive chemicals

2. Power Generation and Aerospace:

• Used in turbine seals, ducts, and heat exchangers due to high thermal and corrosion stability

3. Food & Beverage Equipment:

• Ideal for sanitary welds in brewing and distillation processes

4. Cryogenic and Marine Applications:

• Performs well in low-temperature or high-moisture environments

5. Dissimilar Metal Joining:

• Suitable for welding nickel to stainless steels, carbon steels, and copper-nickel combinations

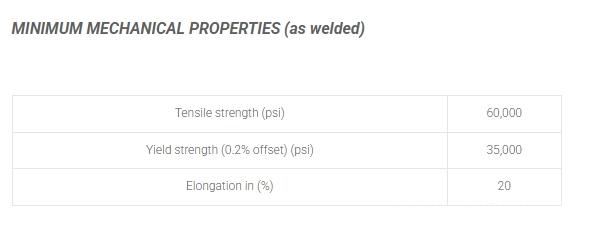

Parameters Table / Selection Table

Advantages / Selling Points

• Superior Corrosion Resistance: Exceptional in caustic, acidic, and chloride-rich environments

• Welds Nickel to Dissimilar Metals: One of the most flexible pure-nickel welding alloys

• High Purity for Critical Welds: Ensures clean, contamination-free joints for chemical or food-grade use

• Easy Handling: Smooth arc characteristics make it user-friendly for manual TIG and automated welding

• Reliable Strength and Ductility: Maintains mechanical integrity in demanding industrial settings
